Hydz classic piezo 12VDC buzzer HYT-3015
Cov yam ntxwv hluav taws xob
| 1 | Rated voltage (VAC) | 12 v |
| 2 | Kev khiav hauj lwm voltage (V) | 3-24 |
| 3 | Suab Output ntawm 10cm (dB) | ≥90 |
| 4 | Kev siv tam sim no (mA) | ≤ 15 |
| 5 | Resonant zaus (Hz) | 3300 ± 500 |
| 6 | Ua haujlwm kub (℃) | -20～+80 |
| 7 | Khoom siv tsev | ABS |
| 8 | Qhov hnyav (g) | 8.0 ib |

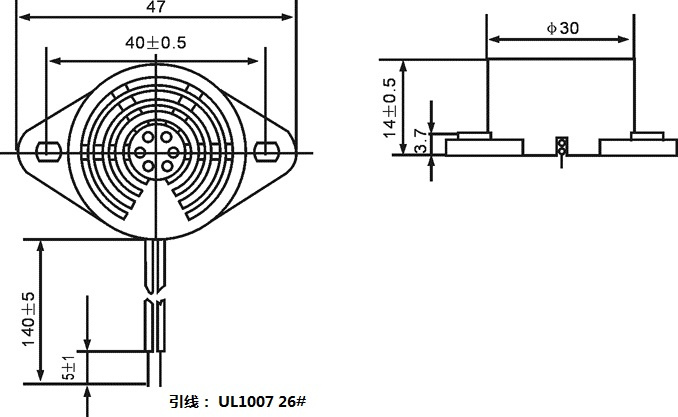

Dimensions thiab Material (unit: mm)
Kev ua haujlwm siab: ± 0.5mm Tsuas yog Spec ified
Nta
1.HYDZ Piezoelectric hlau hom, 3-24VDC kev khiav hauj lwm, ntau yam
2. Yooj yim ntsia hlau qhov installation
3.High suab siab theem thiab lub suab meej
4.Nruam suab nrov.Ua suab tsis tsawg dua 90dB ntawm 30cm, Dav siv hauv cov khoom siv xav tau kev ceeb toom ceeb toom
4. Cov qauv ruaj khov thiab kev ua tau zoo siv puv-automatically ua PCB nrog tus nqi qis dua
Daim Ntawv Ceeb Toom (HANDLING)
1. Cov khoom yuav raug puas ntsoog yog hais tias txhua yam kev nyuaj siab tshaj specifications yog siv.
2. Ua tib zoo tiv thaiv kev khiav hauj lwm hauv Circuit Court los ntawm qhov hluav taws xob surge los ntawm kev quab yuam ntau dhau, ntog, poob siab lossis kub hloov.
3. Tsis txhob rub cov hlau lead ntau dhau vim tias cov hlau tuaj yeem tawg lossis qhov taw tes soldering tawm.
Daim Ntawv Ceeb Toom (Storage and Operating Condition)
1. Cov khoom cia khoom
Thov khaws cov khoom nyob rau hauv ib chav uas qhov kub / av noo ruaj khov thiab zam qhov chaw uas muaj qhov kub thiab txias hloov.Thov khaws cov khoom raws li hauv qab no:
Kub: -10 ~ + 40 ° C
Humidity: 15-85% RH
2. Hnub tas sij hawm ntawm Cia
Hnub tas sij hawm (lub neej txee) ntawm cov khoom yog rau lub hlis tom qab xa khoom raws li cov xwm txheej ntawm lub ntim ntim thiab tsis tau qhib.Thov siv cov khoom tsis pub dhau rau lub hlis tom qab xa khoom.Yog tias koj khaws cov khoom rau lub sijhawm ntev (ntau tshaj li rau lub hlis), siv kom zoo vim tias cov khoom yuav raug degraded nyob rau hauv solderability vim cia nyob rau hauv tsis zoo tej yam kev mob.Thov confi rm solderability thiab cov yam ntxwv rau cov khoom tsis tu ncua.
3. Daim ntawv ceeb toom ntawm Cov Khoom Muag
Thov tsis txhob khaws cov khoom nyob rau hauv ib qho chaw tshuaj lom neeg (Acids, Alkali, Bases, Organic gas, Sulfi des thiab hais txog), vim hais tias cov yam ntxwv yuav raug txo nyob rau hauv zoo, tej zaum yuav degraded nyob rau hauv solderability vim cia nyob rau hauv ib tug tshuaj chaw.
